# Chapter 6 Multiple Regression

In Chapter 5 we introduced ideas related to modeling for explanation, in particular that the goal of modeling is to make explicit the relationship between some outcome variable \(y\) and some explanatory variable \(x\). While there are many approaches to modeling, we focused on one particular technique: *linear regression*, one of the most commonly-used and easy-to-understand approaches to modeling. Furthermore to keep things simple we only considered models with one explanatory \(x\) variable that was either numerical in Section 5.1 or categorical in Section 5.2.

In this chapter on multiple regression, we’ll start considering models that include more than one explanatory variable \(x\). You can imagine when trying to model a particular outcome variable, like teaching evaluation scores as in Section 5.1 or life expectancy as in Section 5.2, that it would be very useful to include more than just one explanatory variable’s worth of information.

Since our regression models will now consider more than one explanatory variable, the interpretation of the associated effect of any one explanatory variable must be made in conjunction with the other explanatory variables included in your model. Let’s begin!

### Needed packages

Let’s load all the packages needed for this chapter (this assumes you’ve already installed them). Recall from our discussion in Section 4.4 that loading the `tidyverse`

package by running `library(tidyverse)`

loads the following commonly used data science packages all at once:

`ggplot2`

for data visualization`dplyr`

for data wrangling`tidyr`

for converting data to “tidy” format`readr`

for importing spreadsheet data into R- As well as the more advanced
`purrr`

,`tibble`

,`stringr`

, and`forcats`

packages

If needed, read Section 1.3 for information on how to install and load R packages.

## 6.1 One numerical & one categorical explanatory variable

Let’s revisit the instructor evaluation data from UT Austin we introduced in Section 5.1. We studied the relationship between teaching evaluation scores as given by students and “beauty” scores.The variable teaching `score`

was the numerical outcome variable \(y\) and the variable “beauty” score `bty_avg`

was the numerical explanatory \(x\) variable.

In this section, we are going to consider a different model. Our outcome variable will still be teaching score, but now we’ll now include two different explanatory variables: age and gender. Could it be that instructors who are older receive better teaching evaluations from students? Or could it instead be that younger instructors receive better evaluations? Are there differences in evaluations given by students for instructors of different genders? We’ll answer these questions by modeling the relationship between these variables using *multiple regression*, where we have:

- A numerical outcome variable \(y\) the instructor’s teaching score and
- Two explanatory variables:
- A numerical explanatory variable \(x_1\), the instructor’s age
- A categorical explanatory variable \(x_2\), the instructor’s gender.

It is important to note that at the time of this study due to then commonly held beliefs about gender, this variable was often recorded as a binary variable. While the results of a model that oversimplifies gender this way may be imperfect, we still found the results to be very pertinent and relevant today.

### 6.1.1 Exploratory data analysis

Recall that data on the 463 courses at UT Austin can be found in the `evals`

data frame included in the `moderndive`

package. However, to keep things simple, let’s `select()`

only the subset of the variables we’ll consider in this chapter, and save this data in a new data frame called `eval_ch7`

. Note that these are different than the variables chosen in Chapter 6.

Recall the three common steps in an exploratory data analysis we saw in Section 5.1.1:

- Looking at the raw data values.
- Computing summary statistics.
- Creating data visualizations.

Let’s first look at the raw data values by either looking at `evals_ch7`

using RStudio’s spreadsheet viewer or by using the `glimpse()`

function from the `dplyr`

package:

```
Observations: 463
Variables: 4
$ ID <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18,…
$ score <dbl> 4.7, 4.1, 3.9, 4.8, 4.6, 4.3, 2.8, 4.1, 3.4, 4.5, 3.8, 4.5, 4.…
$ age <int> 36, 36, 36, 36, 59, 59, 59, 51, 51, 40, 40, 40, 40, 40, 40, 40…
$ gender <fct> female, female, female, female, male, male, male, male, male, …
```

Let’s also display a random sample of 5 rows of the 463 rows corresponding to different courses in Table 6.1. Remember due to the random nature of the sampling, you will likely end up with a different subset of 5 rows.

ID | score | age | gender |
---|---|---|---|

129 | 3.7 | 62 | male |

109 | 4.7 | 46 | female |

28 | 4.8 | 62 | male |

434 | 2.8 | 62 | male |

330 | 4.0 | 64 | male |

Now that we’ve looked at the raw values in our `evals_ch7`

data frame and got a sense of the data, let’s computing summary statistics. As we did in our exploratory data analyses in Sections 5.1.1 and 5.2.1 from the previous chapter, let’s use the `skim()`

function from the `skimr`

package, being sure to only `select()`

the variables of interest in our model:

```
Skim summary statistics
n obs: 463
n variables: 3
── Variable type:factor ────────────────────────────────────────────────────────
variable missing complete n n_unique top_counts ordered
gender 0 463 463 2 mal: 268, fem: 195, NA: 0 FALSE
── Variable type:integer ───────────────────────────────────────────────────────
variable missing complete n mean sd p0 p25 p50 p75 p100
age 0 463 463 48.37 9.8 29 42 48 57 73
── Variable type:numeric ───────────────────────────────────────────────────────
variable missing complete n mean sd p0 p25 p50 p75 p100
score 0 463 463 4.17 0.54 2.3 3.8 4.3 4.6 5
```

Observe for example that we have no missing data, that there are 268 courses taught by male instructors and 195 courses taught by female instructors, and that the average instructor age is 48.37. Recall however that each row of our data represents a particular course and that the same instructor often teaches more than one course. Therefore the average age of the unique instructors may differ.

Furthermore, let’s compute the correlation coefficient between our two numerical variables: `score`

and `age`

. Recall from Section 5.1.1 that correlation coefficients only exist between numerical variables. We observe that they are “weakly negatively” correlated.

```
# A tibble: 1 x 1
cor
<dbl>
1 -0.107
```

Let’s now perform the last of the three common steps in an exploratory data analysis: creating data visualizations. Given that the outcome variable `score`

and explanatory variable `age`

are both numerical, we’ll use a scatterplot to display their relationship. How can we incorporate the categorical variable `gender`

however? By mapping the variable `gender`

to the color aesthetic, thereby creating a *colored* scatterplot. The following code is very similar to the code that created the scatterplot of teaching score over “beauty” score in Figure 5.2, but with `color = gender`

added to the `aes()`

thetic mapping.

```
ggplot(evals_ch7, aes(x = age, y = score, color = gender)) +
geom_point() +
labs(x = "Age", y = "Teaching Score", color = "Gender") +
geom_smooth(method = "lm", se = FALSE)
```

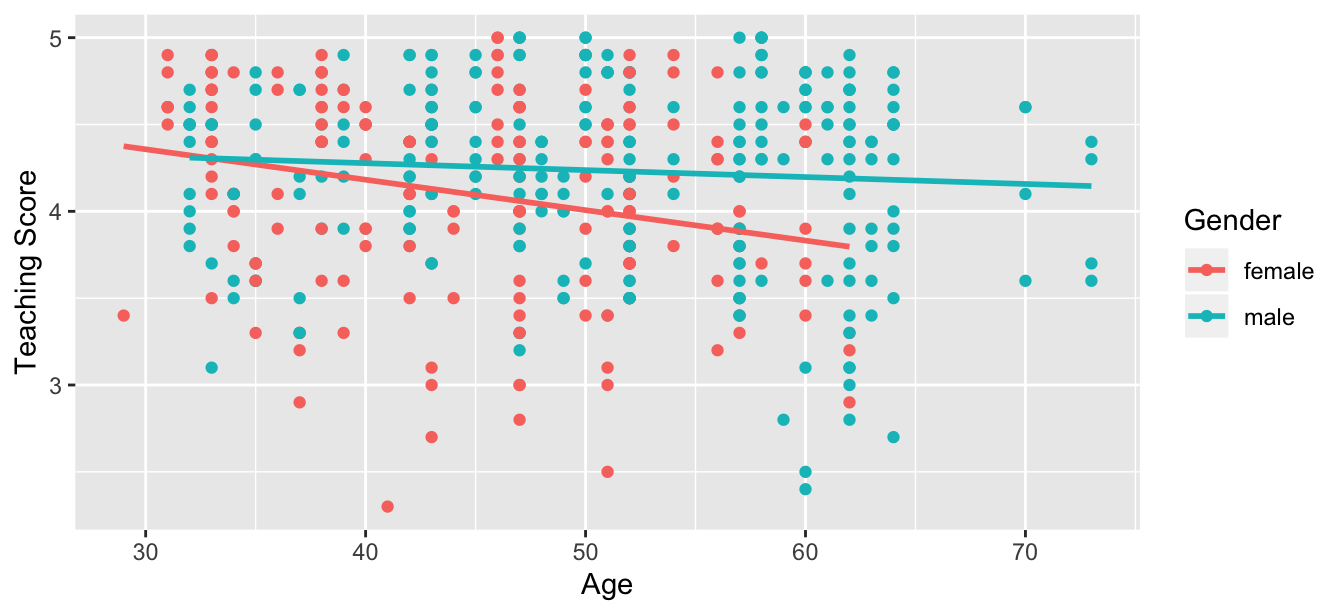

In the resulting Figure 6.1, observe that `ggplot`

assigns a default red/blue color scheme to the points and to the lines associated with the two levels of `gender`

: `female`

and `male`

. Furthermore the `geom_smooth(method = "lm", se = FALSE)`

layer automatically fits a different regression line for each group.

We notice some interesting trends. First, there are almost no women faculty over the age of 60 as evidenced by lack of red dots above \(x\) = 60. Second, while both regression lines are negatively sloped with age (i.e. older instructors tend to have lower scores), the slope for age for the female instructors is *more* negative. In other words, female instructors are paying a harsher penalty for their age than the male instructors.

### 6.1.2 Interaction model

Let’s now quantify the relationship of our outcome variable \(y\) and the two explanatory variables using one type of multiple regression model known as an *interaction model*. We’ll explain where the term “interaction” comes from at the end of this section.

In particular, we’ll write out the equation of the two regression lines in Figure 6.1 using the values from a regression table. Before we do this however, let’s go over a brief refresher of regression when you have a categorical explanatory variable \(x\).

Recall in Section 5.2.2 we fit a regression model for countries’ life expectancies as a function of which continent the country was in. In other words, we had a numerical outcome variable \(y\) = `lifeExp`

and a categorical explanatory variable \(x\) = `continent`

which had 5 levels: `Africa`

, `Americas`

, `Asia`

, `Europe`

, and `Oceania`

. Let’s re-display the regression table you saw in Table 5.8:

term | estimate | std_error | statistic | p_value | lower_ci | upper_ci |
---|---|---|---|---|---|---|

intercept | 54.8 | 1.02 | 53.45 | 0 | 52.8 | 56.8 |

continentAmericas | 18.8 | 1.80 | 10.45 | 0 | 15.2 | 22.4 |

continentAsia | 15.9 | 1.65 | 9.68 | 0 | 12.7 | 19.2 |

continentEurope | 22.8 | 1.70 | 13.47 | 0 | 19.5 | 26.2 |

continentOceania | 25.9 | 5.33 | 4.86 | 0 | 15.4 | 36.5 |

Recall our interpretation of the `estimate`

column. Since `Africa`

was the “baseline for comparison” group, the `intercept`

term corresponds to the mean life expectancy for all countries in Africa of 54.8 years. The other 4 values of `estimate`

correspond to “offsets” relative to the baseline group. So for example, the “offset” corresponding to the Americas is +18.8 as compared to the baseline for comparison group Africa. In other words, the average life expectancy for countries in the Americas is 18.8 years *higher*. Thus the mean life expectancy for all countries in the Americas is 54.8 + 18.8 = 73.6. The same interpretation holds for Asia, Europe, and Oceania.

Going back to our multiple regression model for teaching `score`

using `age`

and `gender`

in Figure 6.1, we generate the regression table using the same two-step approach from Chapter 5: we first “fit” the model using the `lm()`

“linear model” function and then we apply the `get_regression_table()`

function. This time however, our model formula won’t be of the form `y ~ x`

, but rather of the form `y ~ x1 * x2`

. In other words, our two explanatory variables `x1`

and `x2`

are separated by a `*`

sign:

```
# Fit regression model:
score_model_interaction <- lm(score ~ age * gender, data = evals_ch7)
# Get regression table:
get_regression_table(score_model_interaction)
```

term | estimate | std_error | statistic | p_value | lower_ci | upper_ci |
---|---|---|---|---|---|---|

intercept | 4.883 | 0.205 | 23.80 | 0.000 | 4.480 | 5.286 |

age | -0.018 | 0.004 | -3.92 | 0.000 | -0.026 | -0.009 |

gendermale | -0.446 | 0.265 | -1.68 | 0.094 | -0.968 | 0.076 |

age:gendermale | 0.014 | 0.006 | 2.45 | 0.015 | 0.003 | 0.024 |

Looking at the regression table output in Table 6.3, we see there are four rows of values in the `estimate`

column. While it is not immediately apparent, using these four values we can write out the equations of both lines in Figure 6.1.

First, since the word `female`

comes alphabetically before `male`

, female instructors are the “baseline for comparison” group. Therefore `intercept`

is the intercept *for only the female instructors*. This holds similarly for `age`

. It is the slope for age *for only the female instructors*. Thus the red regression line in Figure 6.1 has an intercept of 4.883 and slope for age of -0.018. Remember that for this particular data, while the intercept has a mathematical interpretation, it has no *practical* interpretation since there can’t be any instructors with age = 0.

What about the intercept and slope for age of the male instructors? In other words, the blue line in Figure 6.1? This is where our notion of “offsets” comes into play once again. The value for `gendermale`

of -0.446 is not the intercept for the male instructors, but rather the *offset* in intercept for male instructors relative to female instructors. Therefore, the intercept for the male instructors is `intercept + gendermale`

= 4.883 + (-0.446) = 4.883 - 0.446 = 4.437.

Similarly, `age:gendermale`

= 0.014 is not the slope for age for the male instructors, but rather the *offset* in slope for the male instructors. Therefore, the slope for age for the male instructors is `age + age:gendermale`

= -0.018 + 0.014 = -0.004. Therefore the blue regression line in Figure 6.1 has intercept 4.437 and slope for age of -0.004.

Let’s summarize these values in Table 6.4 and focus on the two slopes for age:

Gender | Intercept | Slope for age |
---|---|---|

Female instructors | 4.883 | -0.018 |

Male instructors | 4.437 | -0.004 |

Since the slope for age for the female instructors was -0.018, it means that on average, a female instructor who is a year older would have a teaching score that is 0.018 units **lower**. For the male instructors however, the corresponding associated decrease was on average only 0.004 units. While both slopes for age were negative, the slope for age for the female instructors is *more negative*. This is consistent with our observation from Figure 6.1, that this model is suggesting that age is impacts teaching scores for female instructors more than for male instructors.

Let’s now write the equation for our regression lines, which we can use to compute our fitted values \(\widehat{y} = \widehat{\text{score}}\).

\[ \begin{aligned} \widehat{y} = \widehat{\text{score}} &= b_0 + b_{\mbox{age}} \cdot \mbox{age} + b_{\mbox{male}} \cdot \mathbb{1}_{\mbox{is male}}(x) + b_{\mbox{age,male}} \cdot \mbox{age} \cdot \mathbb{1}_{\mbox{is male}}\\ &= 4.883 -0.018 \cdot \mbox{age} - 0.446 \cdot \mathbb{1}_{\mbox{is male}}(x) + 0.014 \cdot \mbox{age} \cdot \mathbb{1}_{\mbox{is male}} \end{aligned} \]

Whoa! That’s even more daunting than the equation you saw for the life expectancy as a function of continent in Section 5.2.2! However if you recall what an “indicator function” AKA “dummy variable” does, the equation simplifies greatly. In the previous equation, we have one indicator function of interest:

\[ \mathbb{1}_{\mbox{is male}}(x) = \left\{ \begin{array}{ll} 1 & \text{if } \text{instructor } x \text{ is male} \\ 0 & \text{otherwise}\end{array} \right. \]

Second, let’s match coefficients in the previous equation with values in the `estimate`

column in our regression table in Table 6.3:

- \(b_0\) is the
`intercept`

= 4.883 for the female instructors - \(b_{\mbox{age}}\) is the slope for
`age`

= -0.018 for the female instructors - \(b_{\mbox{male}}\) is the offset in intercept for the male instructors
- \(b_{\mbox{age,male}}\) is the offset in slope for age for the male instructors

Let’s put this all together and compute the fitted value \(\widehat{y} = \widehat{\text{score}}\) for female instructors. Since for female instructors \(\mathbb{1}_{\mbox{is male}}(x)\) = 0, the previous equation becomes

\[ \begin{aligned} \widehat{y} = \widehat{\text{score}} &= 4.883 - 0.018 \cdot \mbox{age} - 0.446 \cdot 0 + 0.014 \cdot \mbox{age} \cdot 0\\ &= 4.883 - 0.018 \cdot \mbox{age} - 0 + 0\\ &= 4.883 - 0.018 \cdot \mbox{age}\\ \end{aligned} \]

which is the equation of the red regression line in Figure 6.1 corresponding to the female instructors in Table 6.4. Correspondingly, since for male instructors \(\mathbb{1}_{\mbox{is male}}(x)\) = 1, the previous equation becomes

\[ \begin{aligned} \widehat{y} = \widehat{\text{score}} &= 4.883 - 0.018 \cdot \mbox{age} - 0.446 + 0.014 \cdot \mbox{age}\\ &= (4.883 - 0.446) + (- 0.018 + 0.014) * \mbox{age}\\ &= 4.437 - 0.004 \cdot \mbox{age}\\ \end{aligned} \]

which is the equation of the blue regression line in Figure 6.1 corresponding to the male instructors in Table 6.4.

Phew! That was a lot of arithmetic! Don’t fret however, this is as hard as modeling will get in this book. If you’re still a little unsure about using indicator functions and using categorical explanatory variables in a regression model, we *highly* suggest you re-read Section 5.2.2. This involves only a single categorical explanatory variable and thus is much simpler.

Before we end this section, we explain why we refer to this type of model as an “interaction model.” The \(b_{\mbox{age,male}}\) term in the equation for the fitted value \(\widehat{y}\) = \(\widehat{\text{score}}\) is what’s known in statistical modeling as an “interaction effect.” The interaction term corresponds to the `age:gendermale`

= 0.014 in the final row of the regression table in Table 6.3.

We say there is an interaction effect if the associated effect of one variable *depends on the value of another variable*. In other words, the two variables are “interacting” with each other. In our case, the associated effect of the variable age *depends* on the value of the other variable gender. This was evidenced by the difference in slopes for age of +0.014 of male instructors relative to female instructors.

Another way of thinking about interaction effects on teaching scores is as follows. For a given instructor at UT Austin, there might be an associated effect of their age *by itself*, there might be an associated effect of their gender *by itself*, but when age and gender are considered *together* there might an *additional effect* above and beyond the two individual effects.

### 6.1.3 Parallel slopes model

When creating regression models with one numerical and one categorical explanatory variable, we are not just limited to interaction models as we just saw. Another type of model we can use is known as a *parallel slopes* model. Unlike interaction models where the regression lines can have different intercepts and different slopes, parallel slopes models still allow for different intercepts but *force* all lines to have the same slope. The resulting regression lines are thus parallel. Let’s visualize the best-fitting parallel slopes model to our `evals_ch7`

data.

Unfortunately, the `ggplot2`

package does not have a convenient way to plot a parallel slopes model. We therefore created our own special purpose function `gg_parallel_slopes()`

and included it in the `moderndive`

package:

```
Plotting parallel slopes models is now much easier using the
`geom_parallel_slopes()` function. We suggest you use
`geom_parallel_slopes()` instead of `gg_parallel_slopes()`; read the help
file by running `?geom_parallel_slopes` to learn how.
```

Note the arguments to this function: the outcome variable `y = "score"`

, the numerical explanatory variable `num_x = "age"`

, the categorical explanatory variable `cat_x = "gender"`

, and the data frame that includes this `data = evals_ch7`

. Be careful to include the quotation marks when specifying all variables.

Note that the `gg_parallel_slopes()`

function is quite different than all the `ggplot()`

code you saw in Chapter 2. This is because the `ggplot2`

package does not include a function for plotting parallel slopes models. Thus we had to write a new function for ourselves and include it in the `moderndive`

package. If you’re curious, you can see the code for this function on GitHub.

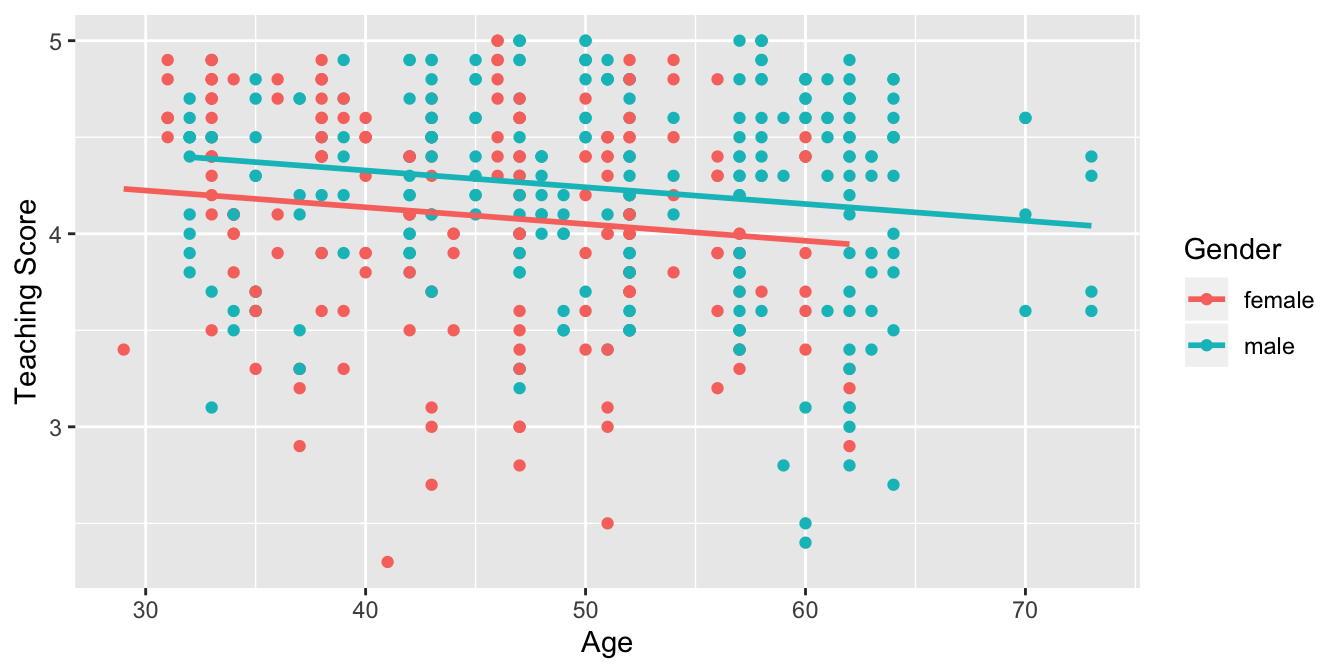

Observe in Figure 6.2 that we now have parallel lines corresponding to the female and male instructors respectively: here they have the same negative slope. This is telling us that instructors who are older will tend to receive lower teaching scores than instructors who are younger. Furthermore, since the lines are parallel, the associated penalty for aging is assumed to be the same for both female and male instructors.

However, observe also in Figure 6.2 that these two lines have different intercepts as evidenced by the fact that the blue line corresponding to the male instructors is higher than the red line corresponding to the female instructors. This is telling us that irrespective of age, female instructors tended to receive lower teaching scores than male instructors.

In order to obtain the precise numerical values of the two intercepts and the single common slope, we once again “fit” the model using the `lm()`

“linear model” function and then apply the `get_regression_table()`

function. However, unlike the interaction model which had a model formula of the form `y ~ x1 * x2`

, our model formula is now of the form `y ~ x1 + x2`

. In other words our two explanatory variables `x1`

and `x2`

are separated by a `+`

sign:

```
# Fit regression model:
score_model_parallel_slopes <- lm(score ~ age + gender, data = evals_ch7)
# Get regression table:
get_regression_table(score_model_parallel_slopes)
```

term | estimate | std_error | statistic | p_value | lower_ci | upper_ci |
---|---|---|---|---|---|---|

intercept | 4.484 | 0.125 | 35.79 | 0.000 | 4.238 | 4.730 |

age | -0.009 | 0.003 | -3.28 | 0.001 | -0.014 | -0.003 |

gendermale | 0.191 | 0.052 | 3.63 | 0.000 | 0.087 | 0.294 |

Similarly to the regression table for the interaction model from Table 6.3, we have an `intercept`

term corresponding to the intercept for the “baseline for comparison” female instructor group and a `gendermale`

term corresponding to the *offset* in intercept for the male instructors relative to female instructors. In other words, in Figure 6.2 the red regression line corresponding to the female instructors has an intercept of 4.484 while the blue regression line corresponding to the male instructors has an intercept of 4.484 + 0.191 = 4.675. Once again, since there aren’t any instructors of age 0, the intercepts only have a mathematical interpretation but no practical one.

Unlike in Table 6.3 however, we now only have a single slope for age of -0.009. This is because model specifies that both the female and male instructors have a common slope for age. This is telling us that an instructor who is a year older than another instructor received a teaching score that is on average 0.018 units *lower*. This penalty for aging applies equally for both female and male instructors.

Let’s summarize these values in Table 6.6, noting the different intercepts but common slopes:

Gender | Intercept | Slope for age |
---|---|---|

Female instructors | 4.484 | -0.009 |

Male instructors | 4.675 | -0.009 |

Let’s now write the equation for our regression lines, which we can use to compute our fitted values \(\widehat{y} = \widehat{\text{score}}\).

\[ \begin{aligned} \widehat{y} = \widehat{\text{score}} &= b_0 + b_{\mbox{age}} \cdot \mbox{age} + b_{\mbox{male}} \cdot \mathbb{1}_{\mbox{is male}}(x)\\ &= 4.484 -0.009 \cdot \mbox{age} + 0.191 \cdot \mathbb{1}_{\mbox{is male}}(x) \end{aligned} \]

Let’s put this all together and compute the fitted value \(\widehat{y} = \widehat{\text{score}}\) for female instructors. Since for female instructors the indicator function \(\mathbb{1}_{\mbox{is male}}(x)\) = 0, the previous equation becomes

\[ \begin{aligned} \widehat{y} = \widehat{\text{score}} &= 4.484 -0.009 \cdot \mbox{age} + 0.191 \cdot 0\\ &= 4.484 -0.009 \cdot \mbox{age} \end{aligned} \]

which is the equation of the red regression line in Figure 6.2 corresponding to the female instructors. Correspondingly, since for male instructors the indicator function \(\mathbb{1}_{\mbox{is male}}(x)\) = 1, the previous equation becomes

\[ \begin{aligned} \widehat{y} = \widehat{\text{score}} &= 4.484 -0.009 \cdot \mbox{age} + 0.191 \cdot 1\\ &= (4.484 + 0.191) - 0.009 \cdot \mbox{age}\\ &= 4.67 -0.009 \cdot \mbox{age} \end{aligned} \]

which is the equation of the blue regression line in Figure 6.2 corresponding to the male instructors.

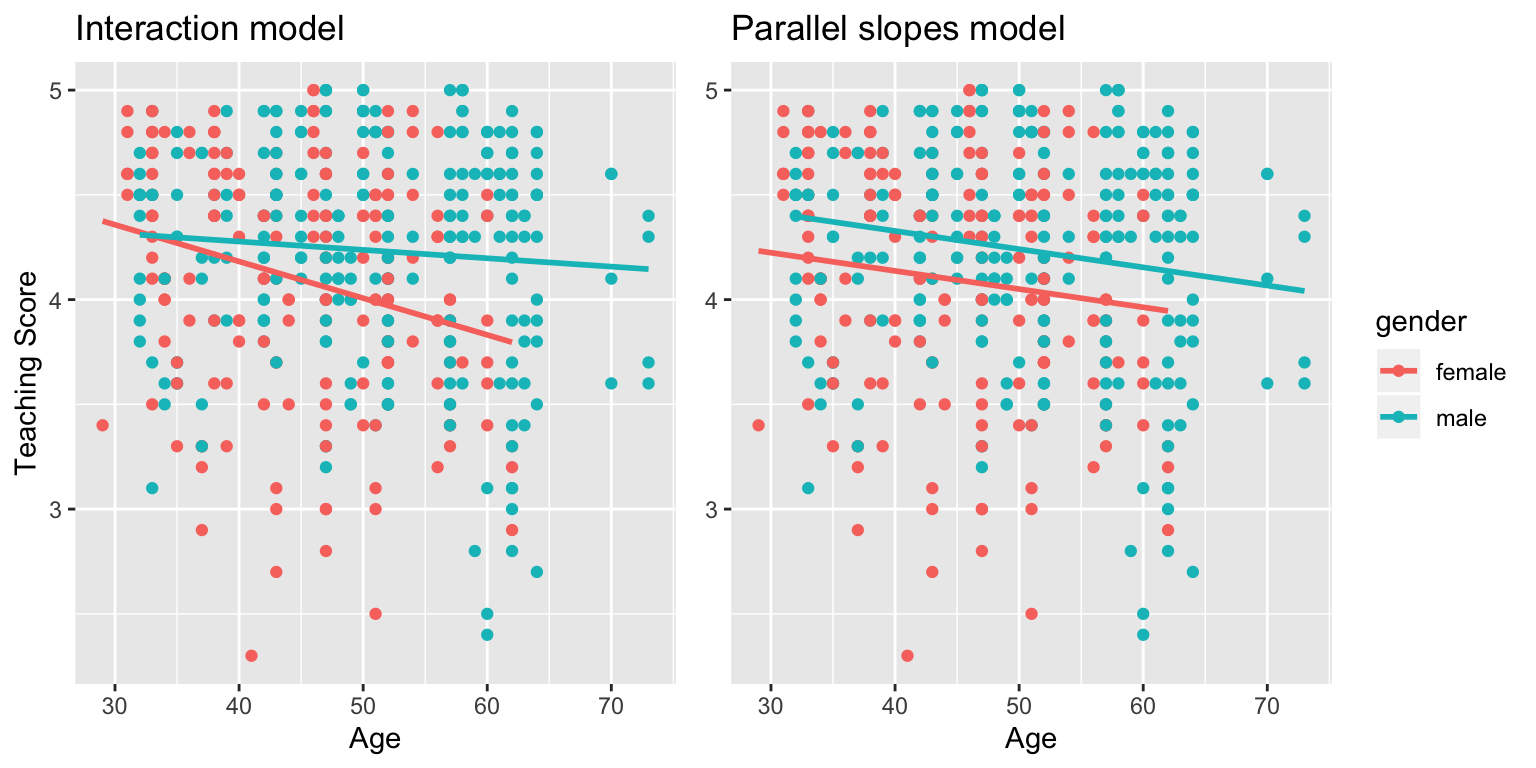

Great! We’ve considered both an interaction model and a parallel slopes model for our data. Let’s compare the visualizations for both models side-by-side in Figure 6.3.

```
Plotting parallel slopes models is now much easier using the
`geom_parallel_slopes()` function. We suggest you use
`geom_parallel_slopes()` instead of `gg_parallel_slopes()`; read the help
file by running `?geom_parallel_slopes` to learn how.
```

At this point, you might be asking yourself: “Why would we ever use a parallel slopes model?” Looking at the left-hand plot in Figure 6.3, the two lines definitely do not appear to be parallel, so why would we *force* them to be parallel? For this data, we agree! It can easily be argued that the interaction model is more appropriate. However, in the upcoming Section 6.3.1 on model selection, we’ll present an example where it can be argued that the case for a parallel slopes model might be stronger.

### 6.1.4 Observed/fitted values and residuals

For brevity’s sake, in this section we’ll only compute the observed values, fitted values, and residuals for the interaction model which we saved in `score_model_interaction`

. You’ll have an opportunity to study these values for the parallel slopes model in the upcoming Learning Check.

Say you have a professor who is female and is 36 years old. What fitted value \(\widehat{y}\) = \(\widehat{\text{score}}\) would our model yield? Say you have another professor who is male and is 59 years old. What would their fitted value \(\widehat{y}\) be?

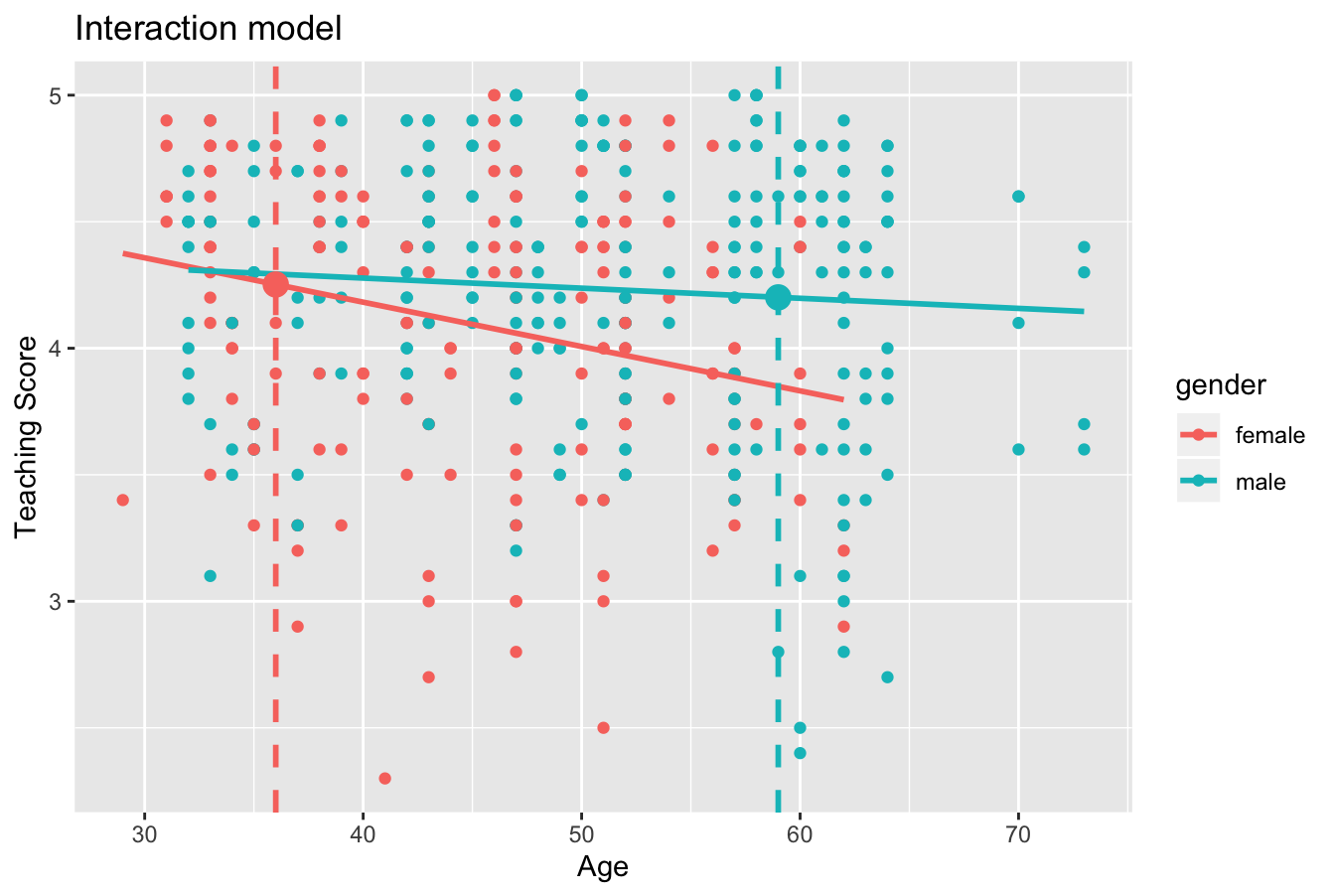

We answer this question visually first by finding the intersection of the red regression line and the vertical line at \(x\) = age = 36. We mark this value with a large red dot in Figure 6.4. Similarly, we can identify the fitted value \(\widehat{y}\) = \(\widehat{\text{score}}\) for the male instructor by finding the intersection of the blue regression line and the vertical line at \(x\) = age = 59. We mark this value with a large blue dot in Figure 6.4.

What are these two values of \(\widehat{y}\) = \(\widehat{\text{score}}\) precisely? We can use the equations of the two regression lines we computed in Section 6.1.2, which in turn were based on values from the regression table in Table 6.3:

- For all female instructors: \(\widehat{y} = \widehat{\text{score}} = 4.883 - 0.018 \cdot \mbox{age}\)
- For all male instructors: \(\widehat{y} = \widehat{\text{score}} = 4.437 - 0.004 \cdot \mbox{age}\)

So our fitted values would be: 4.883 - 0.018 \(\cdot\) 36 = 4.25 and 4.437 - 0.004 \(\cdot\) 59 = 4.20 respectively.

Now say we want the fitted values not just for the instructors of these two courses, but for the instructors of all 463 courses included in the `evals_ch7`

data frame? Doing this by hand would be long and tedious! This is where the `get_regression_points()`

function from the `moderndive`

package can help: it will quickly automate this for all 463 courses. We present a preview of just the first 10 rows out of 463 in Table 6.7.

ID | score | age | gender | score_hat | residual |
---|---|---|---|---|---|

1 | 4.7 | 36 | female | 4.25 | 0.448 |

2 | 4.1 | 36 | female | 4.25 | -0.152 |

3 | 3.9 | 36 | female | 4.25 | -0.352 |

4 | 4.8 | 36 | female | 4.25 | 0.548 |

5 | 4.6 | 59 | male | 4.20 | 0.399 |

6 | 4.3 | 59 | male | 4.20 | 0.099 |

7 | 2.8 | 59 | male | 4.20 | -1.401 |

8 | 4.1 | 51 | male | 4.23 | -0.133 |

9 | 3.4 | 51 | male | 4.23 | -0.833 |

10 | 4.5 | 40 | female | 4.18 | 0.318 |

In fact, it turns out that the female instructor of age 36 taught the first four courses, while the male instructor taught the next 3. The resulting \(\widehat{y}\) = \(\widehat{\text{score}}\) fitted values are in the `score_hat`

column. Furthermore, the `get_regression_points()`

function also returns the residuals \(y-\widehat{y}\). Notice for example the first and fourth courses the female instructor of age 36 taught had positive residuals, indicating that the actual teaching score they received from students was less than their fitted score of 4.25. On the other hand, the second and third course this instructor taught had negative residuals, indicating that the actual teaching score they received from students was more than their fitted score of 4.25.

*Learning check*

**(LC6.1)** Compute the observed values, fitted values, and residuals not for the interaction model as we just did, but rather for the parallel slopes model we saved in `score_model_interaction`

.

## 6.2 Two numerical explanatory variables

Let’s now switch gears and consider multiple regression models where instead of one numerical and one categorical explanatory variable, we now have two numerical explanatory variables. The dataset we’ll use is from “An Introduction to Statistical Learning with Applications in R (ISLR)”, an intermediate-level textbook on statistical and machine learning. Its accompanying `ISLR`

R package contains the datasets that the authors apply various machine learning methods to.

One frequently used dataset in this book is the `Credit`

dataset, where the outcome variable of interest is the credit card debt of 400 individuals. Other variables like income, credit limit, credit rating, and age are included as well. Note that the `Credit`

data is not based on real individuals’ financial information, but rather is a simulated dataset used for educational purposes.

In this section, we’ll fit a regression model where we have

- A numerical outcome variable \(y\), the cardholder’s credit card debt
- Two explanatory variables:
- One numerical explanatory variable \(x_1\), the cardholder’s credit limit
- Another numerical explanatory variable \(x_2\), the cardholder’s income (in thousands of dollars).

### 6.2.1 Exploratory data analysis

Let’s load the `Credit`

dataset, but to keep things simple let’s `select()`

only the subset of the variables we’ll consider in this chapter, and save this data in a new data frame called `credit_ch7`

. Notice our slightly different use of the `select()`

verb here than we introduced in Subsection 3.8.1. For example, we’ll select the `Balance`

variable from `Credit`

but then save it with a new variable name `debt`

. We do this because here the term “debt” is a little more interpretable than “balance.”

```
library(ISLR)
credit_ch7 <- Credit %>%
as_tibble() %>%
select(ID, debt = Balance, credit_limit = Limit,
income = Income, credit_rating = Rating, age = Age)
```

You can observe the effect of our use of`select()`

in the first common step of an exploratory data analysis: looking at the raw values either in RStudio’s spreadsheet viewer or by using `glimpse()`

.

```
Observations: 400
Variables: 6
$ ID <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, …
$ debt <int> 333, 903, 580, 964, 331, 1151, 203, 872, 279, 1350, 140…
$ credit_limit <int> 3606, 6645, 7075, 9504, 4897, 8047, 3388, 7114, 3300, 6…
$ income <dbl> 14.9, 106.0, 104.6, 148.9, 55.9, 80.2, 21.0, 71.4, 15.1…
$ credit_rating <int> 283, 483, 514, 681, 357, 569, 259, 512, 266, 491, 589, …
$ age <int> 34, 82, 71, 36, 68, 77, 37, 87, 66, 41, 30, 64, 57, 49,…
```

Furthermore, let’s look at a random sample of five out of the 400 credit card holders in Table 6.8. Note due to the random nature of the sampling, you will likely end up with a different subset of five rows.

ID | debt | credit_limit | income | credit_rating | age |
---|---|---|---|---|---|

272 | 436 | 4866 | 45.0 | 347 | 30 |

239 | 52 | 2910 | 26.5 | 236 | 58 |

87 | 815 | 6340 | 55.4 | 448 | 33 |

108 | 0 | 3189 | 39.1 | 263 | 72 |

149 | 0 | 2420 | 15.2 | 192 | 69 |

Now that we’ve looked at the raw values in our `credit_ch7`

data frame and got a sense of the data, let’s move on to next common step in an exploratory data analysis: computing summary statistics. Let’s use the `skim()`

function from the `skimr`

package, being sure to only `select()`

the columns of interest for our model:

```
Skim summary statistics
n obs: 400
n variables: 3
── Variable type:integer ───────────────────────────────────────────────────────
variable missing complete n mean sd p0 p25 p50 p75 p100
credit_limit 0 400 400 4735.6 2308.2 855 3088 4622.5 5872.75 13913
debt 0 400 400 520.01 459.76 0 68.75 459.5 863 1999
── Variable type:numeric ───────────────────────────────────────────────────────
variable missing complete n mean sd p0 p25 p50 p75 p100
income 0 400 400 45.22 35.24 10.35 21.01 33.12 57.47 186.63
```

Observe the summary statistics for the outcome variable `debt`

: the mean and median credit card debt are $520.01 and $459.50 respectively and that 25% of card holders had debts of $68.75 or less. Let’s now look at one of the explanatory variables `credit_limit`

: the mean and median credit card limit are $4735.6 and $4622.50 respectively while 75% of card holders had incomes of $57,470 or less.

Since our outcome variable `debt`

and the explanatory variables `credit_limit`

and `income`

are numerical, we can compute the correlation coefficient between the different possible pairs of these variables. First, we can run the `get_correlation()`

command as seen in Subsection 5.1.1 twice, once for each explanatory variable:

Or we can simultaneously compute them by returning a *correlation matrix* which we display in Table 6.9. We can read off the correlation coefficient for any pair of variables by looking them up in the appropriate row/column combination.

debt | credit_limit | income | |
---|---|---|---|

debt | 1.000 | 0.862 | 0.464 |

credit_limit | 0.862 | 1.000 | 0.792 |

income | 0.464 | 0.792 | 1.000 |

For example, the correlation coefficient of:

`debt`

with itself is 1 as we would expect based on the definition of the correlation coefficient.`debt`

with`credit_limit`

is 0.862. This indicates a strong positive linear relationship, which makes sense as only individuals with large credit limits can accrue large credit card debts.`debt`

with`income`

is 0.464. This is suggestive of another positive linear relationship, although not as strong as the relationship between`debt`

and`credit_limit`

.- As an added bonus, we can read off the correlation coefficient between the two explanatory variables,
`credit_limit`

and`income`

of 0.792.

We say there is a high degree of *collinearity* between the `credit_limit`

and `income`

explanatory variables. Collinearity (or multicollinearity) is a phenomenon where one explanatory variable in a multiple regression model is highly correlated with another.

So in our case since `credit_limit`

and `income`

are highly correlated, if we knew someone’s `credit_limit`

, we could make pretty good guesses about their `income`

as well. Thus, these two variables provided somewhat redundant information. However, we’ll leave discussion on how to work with collinear explanatory variables to a more intermediate-level book on regression modeling.

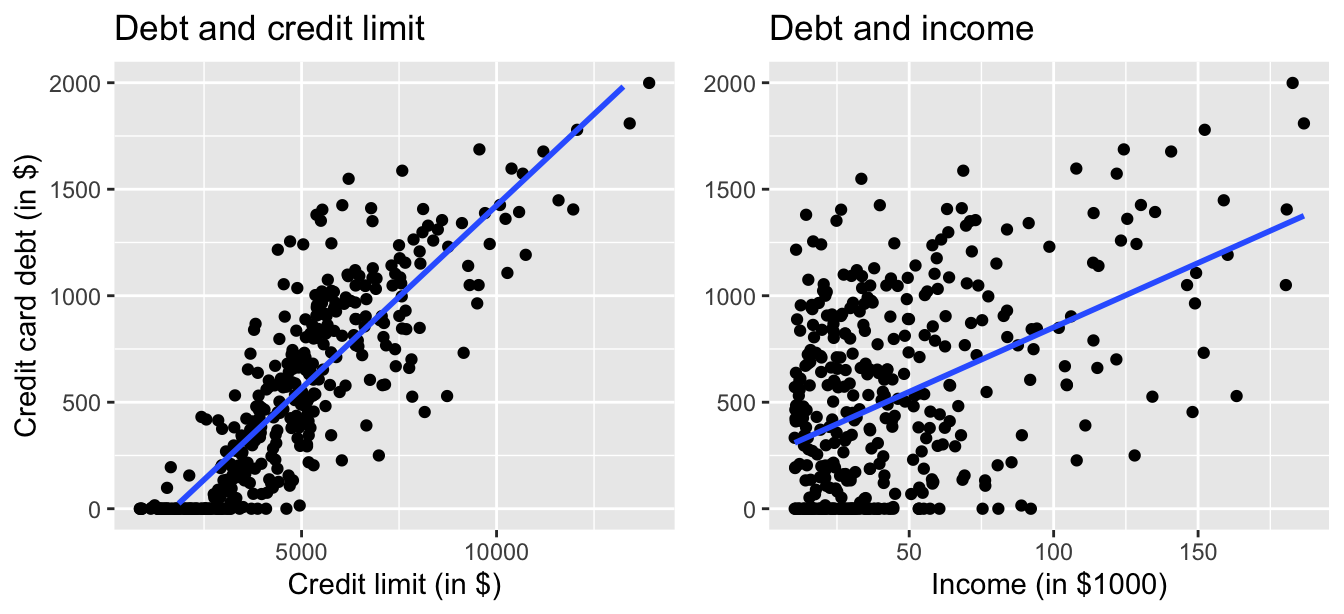

Let’s visualize the relationship of the outcome variable with each of the two explanatory variables in two separate plots in Figure 6.5.

```
ggplot(credit_ch7, aes(x = credit_limit, y = debt)) +
geom_point() +
labs(x = "Credit limit (in $)", y = "Credit card debt (in $)",
title = "Debt and credit limit") +
geom_smooth(method = "lm", se = FALSE)
ggplot(credit_ch7, aes(x = income, y = debt)) +
geom_point() +
labs(x = "Income (in $1000)", y = "Credit card debt (in $)",
title = "Debt and income") +
geom_smooth(method = "lm", se = FALSE)
```

Observe there is a positive relationship between credit limit and credit card debt: as credit limit increases so also does credit card debt. This is consistent with the strongly positive correlation coefficient of 0.862 we computed earlier. In the case of income, the positive relationship doesn’t appear as strong, given the weakly positive correlation coefficient of 0.464.

However, the two plots in Figure 6.5 only focus on the relationship of the outcome variable with each of the two explanatory variables *separately*. To visualize the *joint* relationship of all three variables simultaneously, we need a 3-dimensional (3D) scatterplot as seen in Figure 6.6. Each of the 400 observations in the `credit_ch7`

data frame are marked with a blue point where

- The numerical outcome variable \(y\)
`debt`

is on the vertical axis - The two numerical explanatory variables, \(x_1\)
`income`

and \(x_2\)`credit_limit`

, are on the two axes that form the bottom plane.

Furthermore, we also include the *regression plane*. Recall from Section 5.3.2 that regression lines are “best-fitting” in that of all possible lines we can draw through a cloud of points, the regression line minimizes the *sum of squared residuals*. This concept also extends to models with two numerical explanatory variables. The difference is instead of a “best-fitting” line, we now have a “best-fitting” plane that similarly minimizes the sum of squared residuals. Head to here to open an interactive version of this plot in your browser.

*Learning check*

**(LC6.2)** Conduct a new exploratory data analysis with the same outcome variable \(y\) being `debt`

but with `credit_rating`

and `age`

as the new explanatory variables \(x_1\) and \(x_2\). Remember, this involves three things:

- Most crucially: Looking at the raw data values.
- Computing summary statistics, such as means, medians, and interquartile ranges.
- Creating data visualizations.

What can you say about the relationship between a credit card holder’s debt and their credit rating and age?

### 6.2.2 Regression plane

Let’s now fit a regression model and get the regression table corresponding to the regression plane in Figure 6.6. To keep things brief in this subsection, we won’t consider an interaction model for the two numerical explanatory variables `income`

and `credit_limit`

like we did in Section 6.1.2 using the model formula `score ~ age * gender`

.

Rather we’ll only consider a model fit with a formula of the form `y ~ x1 + x2`

. Somewhat confusing however, since we now have a regression plane instead of multiple lines, the label “parallel slopes” doesn’t apply when you have two numerical explanatory variables.

Just as we have done multiple times throughout Chapters 5 and this chapter, let’s get the regression table for this model using our two-step process and display the results in Table 6.10

- We first “fit” the linear regression model using the
`lm(y ~ x1 + x2, data)`

function and save it in`debt_model`

. - We get the regression table by applying the
`get_regression_table()`

from the`moderndive`

package to`debt_model`

.

```
# Fit regression model:
debt_model <- lm(debt ~ credit_limit + income, data = credit_ch7)
# Get regression table:
get_regression_table(debt_model)
```

term | estimate | std_error | statistic | p_value | lower_ci | upper_ci |
---|---|---|---|---|---|---|

intercept | -385.179 | 19.465 | -19.8 | 0 | -423.446 | -346.912 |

credit_limit | 0.264 | 0.006 | 45.0 | 0 | 0.253 | 0.276 |

income | -7.663 | 0.385 | -19.9 | 0 | -8.420 | -6.906 |

Let’s interpret the three values in the `estimate`

column. First, `intercept`

= -$385.179. The intercept represents the credit card debt for an individual who has `credit_limit`

of $0 and `income`

of $0. In our data however, the intercept has limited practical interpretation since no individuals had `credit_limit`

or `income`

values of $0. Rather, the intercept is used to situate the regression plane in 3D space.

Second, `credit_limit`

= $0.264. Taking into account all the other explanatory variables in our model, for every increase of one dollar in `credit_limit`

, there is an associated increase of on average $0.26 in credit card debt. Just as we did in Subsection 5.1.2, we are cautious *not* imply causality as we saw in Subsection 5.3.1 that “correlation is not necessarily causation.” We do this merely stating there was an *associated* increase.

Furthermore, we preface our interpretation with the statement “taking into account all the other explanatory variables in our model.” Here, by all other explanatory variables we mean `income`

. We do this to emphasize that we are now jointly interpreting the associated effect of multiple explanatory variables in the same model at the same time.

Third, `income`

= -$7.663. Taking into account all the other explanatory variables in our model, for every increase of one unit in the variable `income`

, in other words $1000 in actual income, there is an associated decrease of on average $7.663 in credit card debt.

Putting these results together, the equation of the regression plane that gives us fitted values \(\widehat{y}\) = \(\widehat{\text{debt}}\) is:

\[ \begin{aligned} \widehat{y} &= b_0 + b_1 \cdot x_1 + b_2 \cdot x_2\\ \widehat{\text{debt}} &= b_0 + b_{\text{limit}} \cdot \text{limit} + b_{\text{income}} \cdot \text{income}\\ &= -387.179 + 0.263 \cdot\text{limit} - 7.663 \cdot\text{income} \end{aligned} \]

Recall in the right-hand plot of Figure 6.5 that when plotting the relationship between `debt`

and `income`

in isolation, there appeared to be a *positive* relationship. In the last discussed multiple regression however, when *jointly* modeling the relationship between `debt`

, `credit_limit`

, and `income`

, there appears to be a *negative* relationship of `debt`

and `income`

as evidenced by the negative slope for `income`

of -$7.663. What explains these contradictory results? A phenomenon known as *Simpson’s Paradox*, whereby overall trends that exist in aggregate either disappear or reverse when the data are broken down into groups. In Subsection 6.3.3 we elaborate on this idea by looking at the relationship between `credit_limit`

and credit card `debt`

, but split along different `income`

brackets.

*Learning check*

**(LC6.3)** Fit a new simple linear regression using `lm(debt ~ credit_rating + age, data = credit_ch7)`

where `credit_rating`

and `age`

are the new numerical explanatory variables \(x_1\) and \(x_2\). Get information about the “best-fitting” regression plane from the regression table by applying the `get_regression_table()`

function. How do the regression results match up with the results from your previous exploratory data analysis?

### 6.2.3 Observed/fitted values and residuals

Let’s also compute all fitted values and residuals for our regression model using the `get_regression_points()`

function and present only the first 10 rows of output in Table 6.11. Remember that the coordinates of each of the blue points in our 3D scatterplot in Figure 6.6 can be found in the `income`

, `credit_limit`

, and `debt`

columns. The fitted values on the regression plane are found in the `debt_hat`

column and are computed using our equation for the regression plane in the previous section:

\[ \begin{aligned} \widehat{y} = \widehat{\text{debt}} &= -387.179 + 0.263 \cdot \text{limit} - 7.663 \cdot \text{income} \end{aligned} \]

ID | debt | credit_limit | income | debt_hat | residual |
---|---|---|---|---|---|

1 | 333 | 3606 | 14.9 | 454 | -120.8 |

2 | 903 | 6645 | 106.0 | 559 | 344.3 |

3 | 580 | 7075 | 104.6 | 683 | -103.4 |

4 | 964 | 9504 | 148.9 | 986 | -21.7 |

5 | 331 | 4897 | 55.9 | 481 | -150.0 |

6 | 1151 | 8047 | 80.2 | 1127 | 23.6 |

7 | 203 | 3388 | 21.0 | 349 | -146.4 |

8 | 872 | 7114 | 71.4 | 948 | -76.0 |

9 | 279 | 3300 | 15.1 | 371 | -92.2 |

10 | 1350 | 6819 | 71.1 | 873 | 477.3 |

## 6.4 Conclusion

### 6.4.1 Additional resources

An R script file of all R code used in this chapter is available here.

### 6.4.2 What’s to come?

Congratulations! We’ve completed our first pass through the “Data modeling with moderndive” portion of this book. We’re ready to proceed to the next portion of this book: “Statistical inference with infer”. Statistical inference is the science of inferring about some unknown quantity using sampling.

For example, among the most well-known examples of sampling involved *polls*. Because asking an entire population about their opinions would be a long and arduous task, pollsters often take a smaller sample that is hopefully representative of the population. Based on the results of this sample, pollsters hope to make claims about the entire population.

Once we’ve covered Chapters 7 on sampling, 8 on confidence intervals, and 9 on hypothesis testing, in Chapter 10 on inference for regression we’ll revisit the regression models we studied in Chapter 5 and 6. So far we’ve only studied the `estimate`

column of all our regression tables. The next 4 chapters focus on what the remaining columns mean: the `std_error`

standard error, the `statistic`

test statistic, the `p_value`

p-value, and the `lower_ci`

and `upper_ci`

lower and upper bounds of confidence intervals.

Furthermore in Chapter 10, we’ll revisit the concept of residuals \(y - \widehat{y}\) and discuss their importance when interpreting the results of a regression model. We’ll perform what is known as a *residual analysis* of the `residual`

variable of all `get_regression_points()`

outputs. Residual analyses allow you to verify what are known as the *conditions for inference for regression*. On to Chapter 7 on sampling!
